A55 RAIL

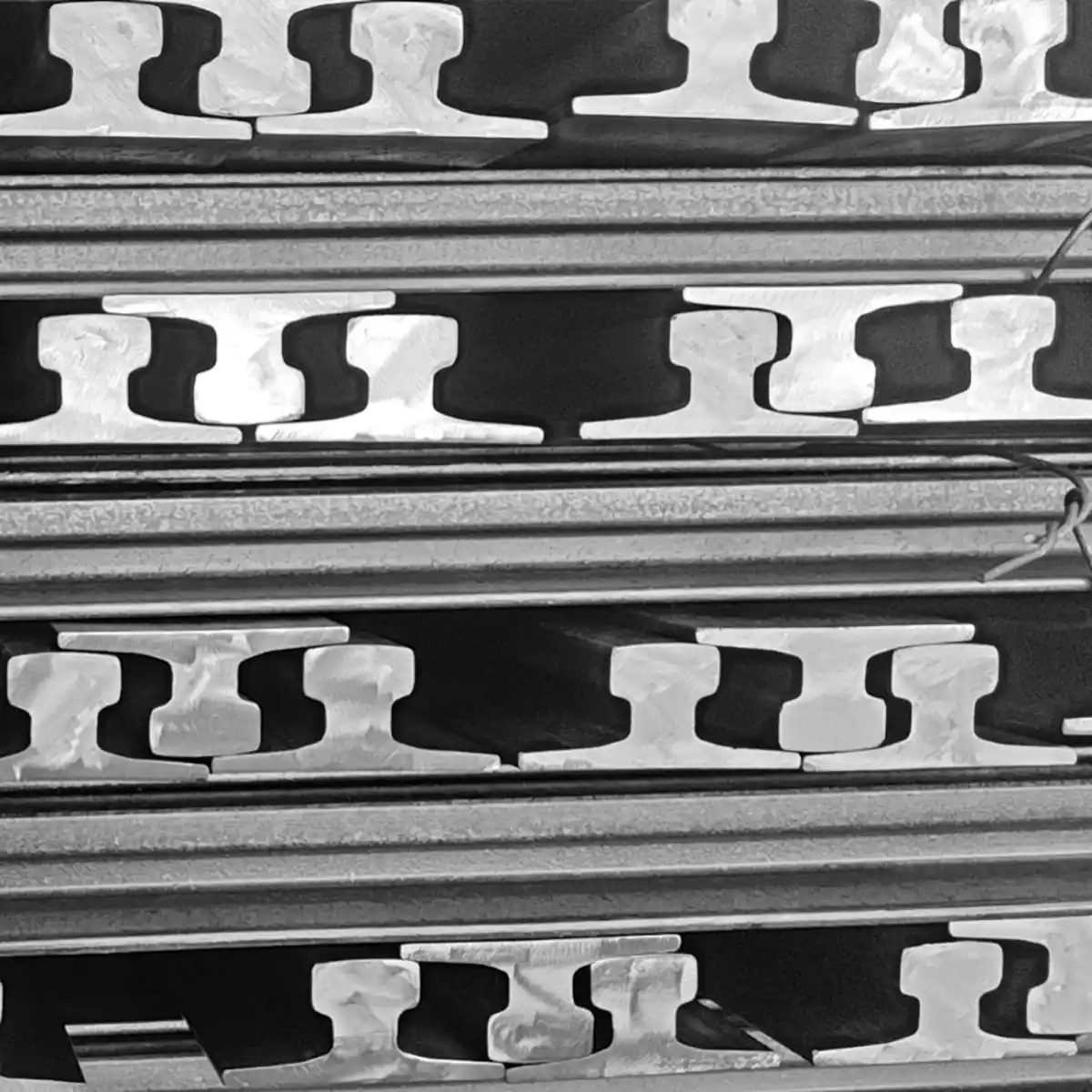

A55 rail is a small crane rail model under the DIN536 standard. The head width is 55mm, the rail height is 65mm, and the bottom width is 150mm. As the middle rail of the smaller model, it is usually used for light cranes and short-distance transportation equipment. Mainly involved in warehousing, factories and machinery and equipment, and other fields.
Glory Rail has DIN536 crane rail full specification stock. Stable crane rail material for projects worldwide. The A55 rail has a small size and a small application range, requiring special corresponding installation accessories. Glory Rail can supply a complete range of crane rail system accessories. To achieve a one-stop procurement service. At the same time, it is aimed at the problems that customers have encountered during the installation and use of the track. GloryRail can provide our technical support.
The Glory Rail team will give you the most timely reply and the most patient support

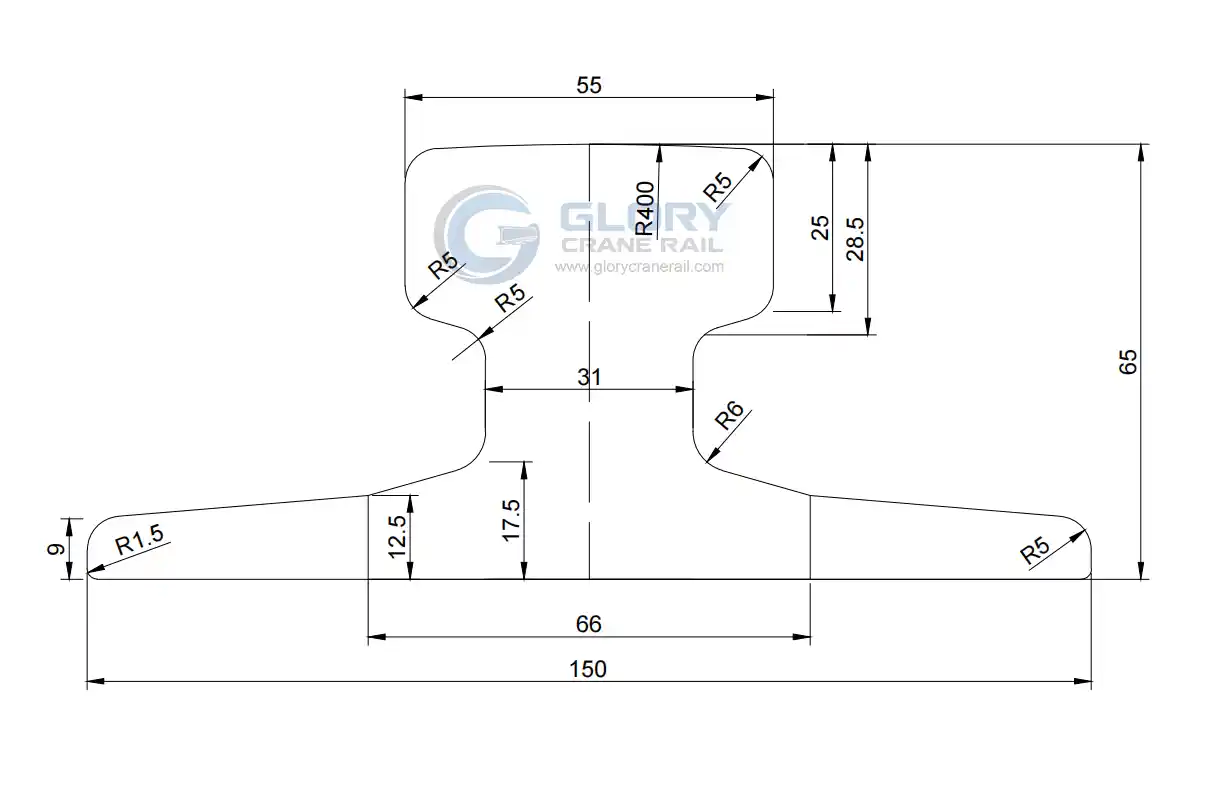

A55 RAIL DIMENSIONS
The A55 belongs to the profile with low height, flat bottom, and heavy thick web. This size profile has a very good load-carrying capacity. The head width is 55mm to carry the matching wheel size.
A55 Rail Dimensions:
Height: 65mm
Bottom width: 150mm
Head width: 55mm
Web thickness: 31mm
A55 RAIL MATERIAL
50Mn material properties
| 50Mn | Mechanical Property | Chemical Composition | ||||||||||||
| Yield strength | Tensile strength | Elongation | Hardness | C | Si | Mn | S | P | Cr | Ni | Cu | |||
| MPa | kg/mm² | MPa | kg/mm² | min | HB | ≤ | ≤ | ≤ | ≤ | ≤ | ||||
| ≥645 | 13% | 0.48-0.56 | 0.17-0.37 | 0.70-1.00 | 0.035 | 0.035 | 0.25 | 0.25 | 0.25 | |||||
