SQUARE BAR RAIL

A square bar rail (flat bar rail) is a railing material used for lifting equipment or loading goods. Its cross-sectional shape is flat and rectangular, and it is usually made of carbon steel and low alloy steel.

The square bar rail can be divided into two types, one is the ordinary square bar track, which uses ordinary carbon steel S235JR. The other is the reinforced square bar track. Using low-alloy S355JR steel, the reinforced crane rail track has improved strength and stability compared with ordinary flat steel lifting tracks and is suitable for carrying heavier goods or larger lifting equipment.

The flat steel crane rail is mainly used to install the steel structure of the crane, and the rail is fixed on the steel beam by welding. It can not only be used as a track for equipment operation but also strengthen the strength and stability of the structure itself. Flat steel hoisting rails also require regular maintenance and inspections to ensure their surface flatness and the accuracy of rail geometry.

GloyRail provides the production and sales of Square bar rail. We have our own processing factory and provide integrated services of production, processing, and sales.

crane rail flat bar

Flat bar rail

Size Height(mm)
A
Width(mm)
B
Weight(kg/m)
40x30mm 30 40 9.42
50x30mm 30 50 11.775
60x40mm 40 60 18.84
65x40mm 40 65 20.41
70x40mm 40 70 21.98
75x40mm 40 75 23.55
80x60mm 60 80 37.68
90x40mm 40 90 28.26
100x60mm 60 100 47.1

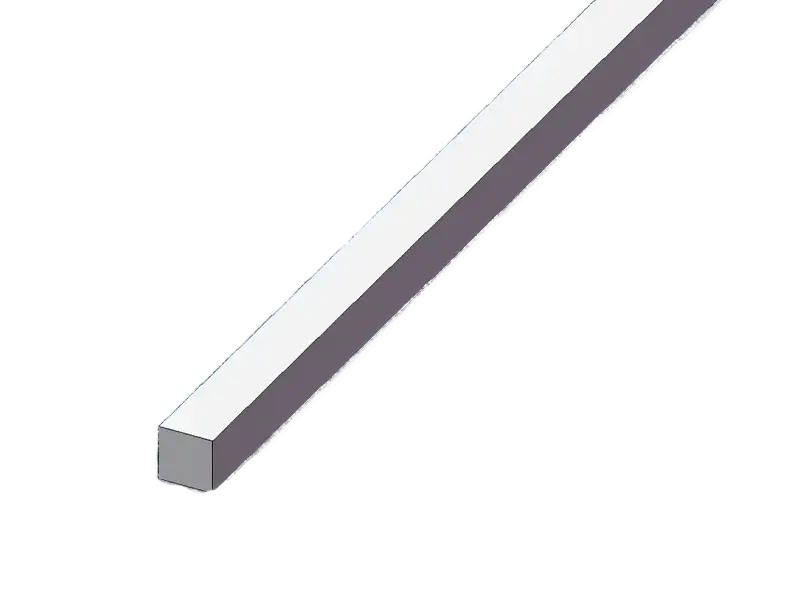

Square bar rail

Size Height(mm)
A
Width(mm)
B
Weight(kg/m)
30x30mm 30 30 7.065
40x40mm 40 40 12.56
50x50mm 50 50 19.625
60x60mm 60 60 28.26
70x70mm 70 70 38.465
80x80mm 80 80 50.24
90x90mm 90 90 63.585
100x100mm 100 100 78.5
110x110mm 110 110 94.985
