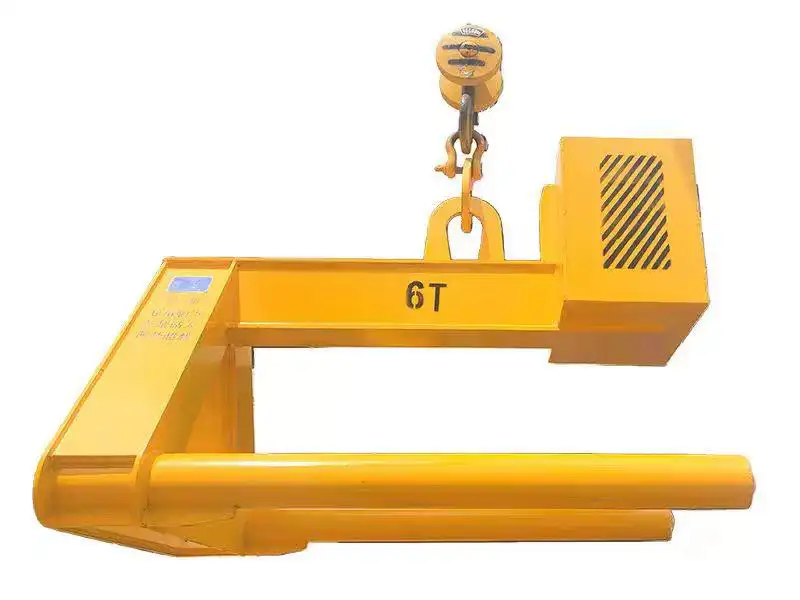

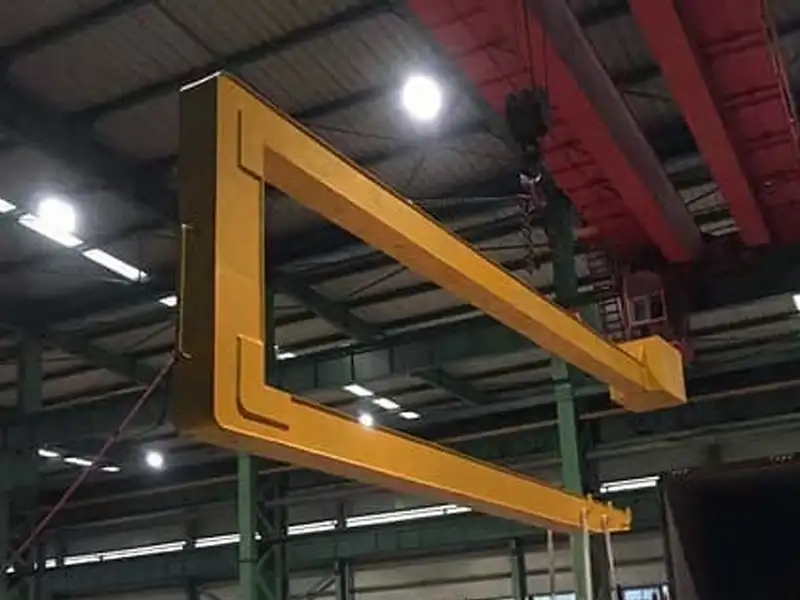

Features of C-type coil hook
The C-hook is mainly used for horizontal lifting of coiled plates.
Because its shape resembles the letter C, it is called the C-type hook.

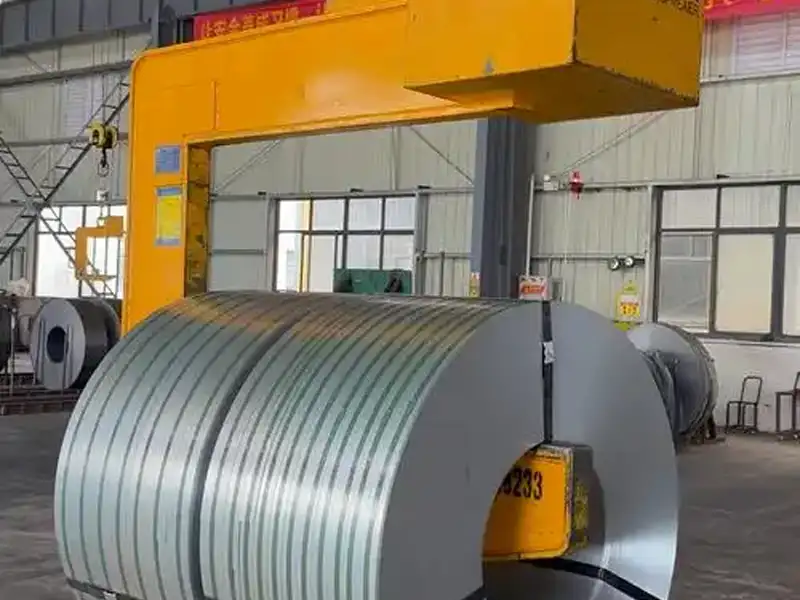

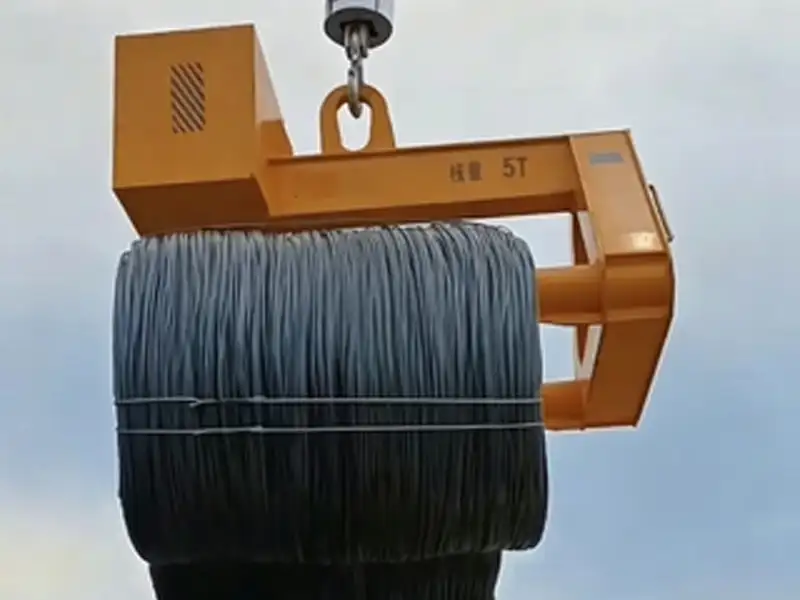

Application: Specially designed for lifting and loading and unloading steel coils
The applicable range of coils depends on the following factors:
Coil diameter, the size of the hook usually needs to be customized according to the inner diameter of the coil;
Coil weight, when selecting a hook, you need to ensure that its rated load is greater than or equal to the weight of the coil;
Coil width, the hook structure needs to adapt to the width of the coil to ensure stability and balance during lifting.
Contact us for more crane hook specifications
Specifications for C-coil hook
All GloryRail Heavy Duty C-Hooks are designed and manufactured in accordance with the latest revisions of ASME Specifications B30.20 and BTH-1, Design of Below-the-Hook Lifting Devices.
Specifications | Workload | Coil Width
(mm) |
ID of steel coil
(mm) |
length
(mm) |
Size of the opening
(mm) |
Wall thickness
(mm) |
C-3.2T-300 | 3.2T | ≤300 | ≥400 | 300 | 500 | 350 |
C-3.2T-350-500 | 3.2T | 350-500 | ≥400 | 500 | 450 | 300 |
C-3.5T-750-900 | 5T | 750-900 | ≥400 | 900 | 500 | 300 |
C-5T-750-900 | 5T | 750-900 | ≥400 | 900 | 500 | 300 |
C-5T-900-1100 | 5T | 900-1100 | ≥500 | 1100 | 450 | 250 |
C-5T-1100-1300 | 5T | 1100-1300 | ≥500 | 1300 | 450 | 250 |
C-10T-750-900 | 10T | 750-900 | ≥500 | 900 | 650 | 450 |
C-10T-750-900 | 10T | 750-900 | ≥500 | 300 | 650 | 450 |
C-10T-900-1120 | 10T | 750-900 | ≥500 | 1120 | 600 | 400 |
C-10T-1100-1300 | 10T | 900-1120 | ≥500 | 1300 | 600 | 400 |
C-10T-1300-1500 | 10T | 1300-1500 | ≥500 | 1500 | 650 | 450 |
C-16T-900-1100 | 16T | 900-1100 | ≥600 | 1100 | 850 | 650 |
C-16T-1100-1250 | 16T | 1100-1250 | ≥600 | 1250 | 650 | 650 |
C-25T-900-1100 | 25T | 900-1100 | ≥600 | 1100 | 860 | 660 |
C-25T-1100-1300 | 25T | 1100-1300 | ≥700 | 1300 | 660 | 660 |
C-32T-1400-1660 | 32T | 1400-1660 | ≥700 | 1660 | 850 | 650 |
Our hook production factory has many years of processing experience and technology accumulation. Continuously improve the cutting, forging, welding, and heat treatment processes of steel to ensure that the hook achieves the required shape and performance. We support different requiremennts customization, such as carring capacity, body diameter, inner width, inner height and eyelet diameteretc. If you have requirements, welcome to contatc us! Our sales will reply you within 24 hours!
