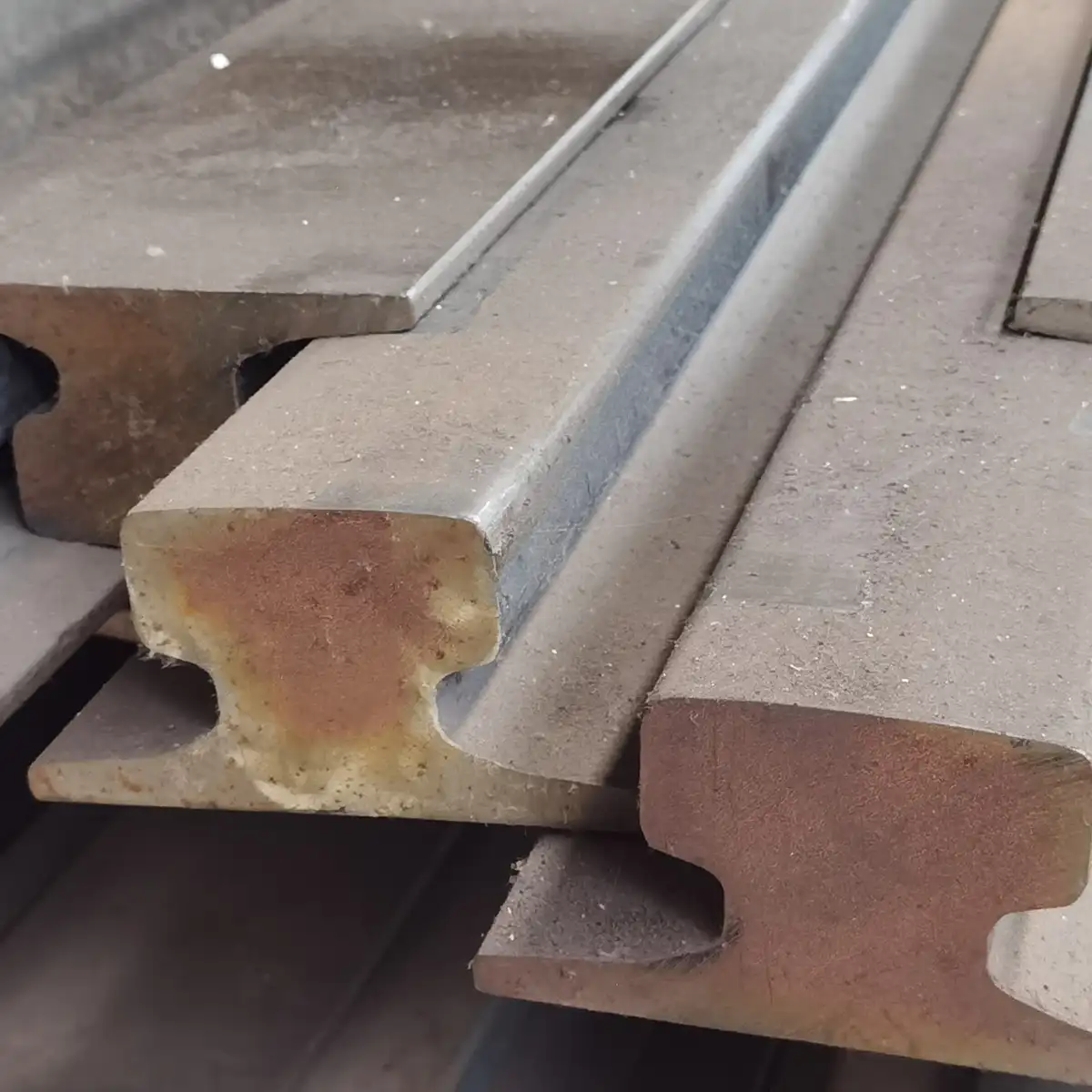

A150 RAIL
A150 rail is the largest model under the DIN536 standard. The head width reaches 150mm. The waist thickness reaches 80mm. It can be used to carry large and super heavy cranes and carrying equipment. They are commonly used in factories, warehouses, ports, and other places where heavy lifting and transportation are required.
The Rail A150 is paired with some heavier accessories. Choose the appropriate rail clamp, rubber backing plate, steel backing plate, and matching high-strength bolts. GloryRail can provide rationalization advice in these areas. And be able to provide the corresponding products and materials. DIN536 crane rail is one of the main products supplied by Glory Rail. Because it is currently one of the most widely used crane rail track models in the world. The flat profile allows the track to carry more weight. Glory Rail has been focusing on the crane rail industry for many years. It has a complete track material inventory. And constantly update and develop related accessories. Our purpose is to provide quality crane rail systems to customers worldwide.
The Glory Rail team will give you the most timely reply and the most patient support
A150 RAIL DIMENSIONS
The A150 belongs to the profile with low height, flat bottom, and heavy thick web. This size profile has a very good load-carrying capacity. The head width is 150mm to carry the matching wheel size.
A150 Rail Dimensions:
Height: 150mm
Bottom width: 220mm
Head width: 150mm
Web thickness: 80mm
A150 RAIL MATERIAL
U71Mn material properties
| Mechanical Property | Chemical Composition | ||||||||||||
| Yield strength | Tensile strength | Elongation | Hardness | C | Si | Mn | S | P | Cr | Ni | Cu | ||
| MPa | kg/mm² | MPa | kg/mm² | min | HB | ≤ | ≤ | ≤ | ≤ | ≤ | |||
| ≥880 | 9% | 0.65-0.76 | 0.15-0.35 | 1.10-1.40 | 0.030 | 0.030 | 0.25 | 0.25 | 0.25 | ||||
