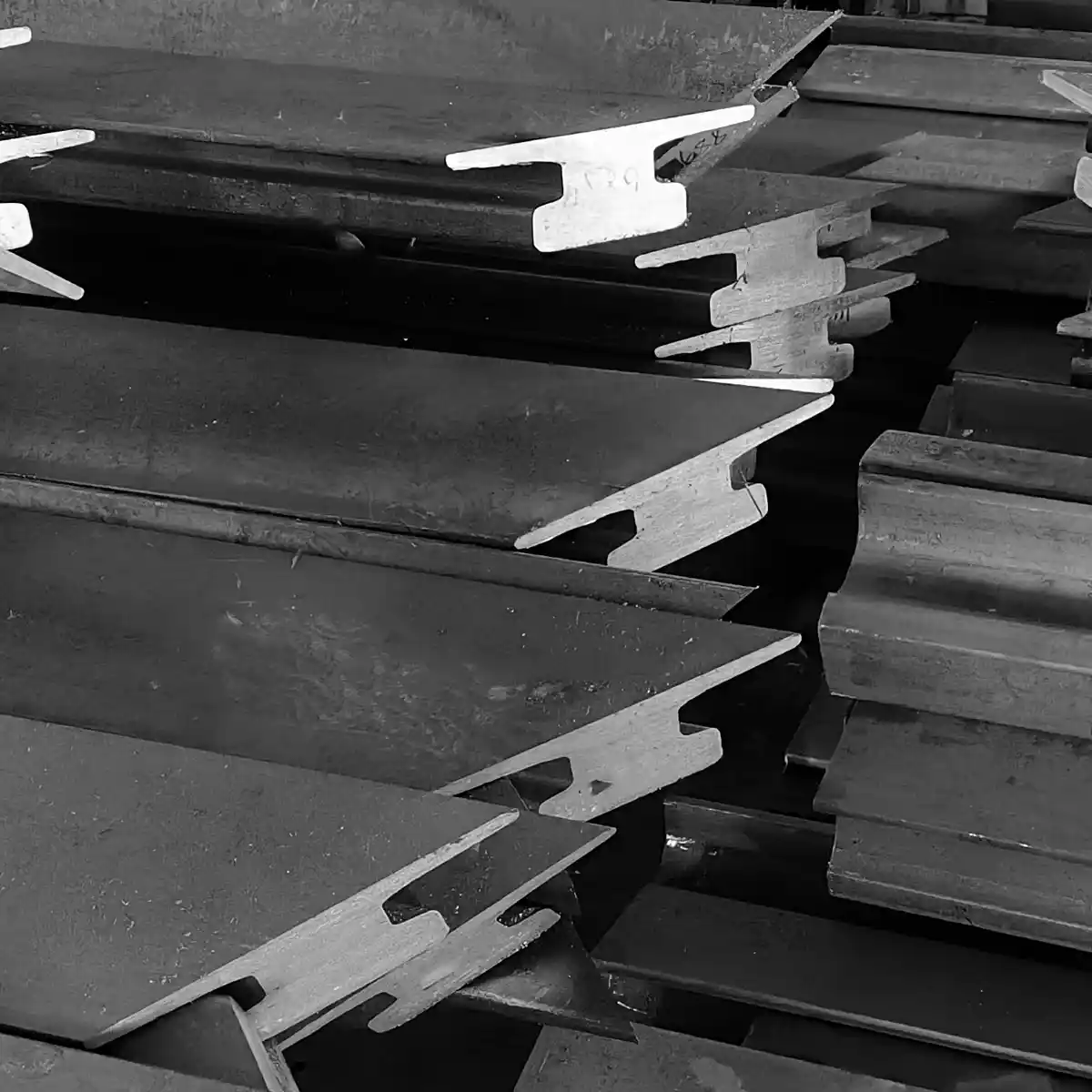

A120 RAIL
A120 rail is a heavy-duty crane rail model under the DIN536 standard. The head width reaches 120mm. Suitable for heavy equipment in the industrial field. They are commonly used in factories, warehouses, ports, and other places where heavy lifting and transportation are required.
Glory Rail provides A120 rail project experience for large steel mills and also provides A120 crane rail and related accessories for some port projects. This type of track has a flat and wide structural profile, and its thick size is suitable for heavy equipment such as metal smelters, ports, and mines. Glory Rail provides fixing systems and related accessories that match A120 rails. A120 track adopts different fixing systems for different usage environments. For example, coking plants cannot use conventional flexible connection rail clamps and rubber pads. In this regard, Glory Rail has rich experience and can provide customers with reasonable advice.
The Glory Rail team will give you the most timely reply and the most patient support

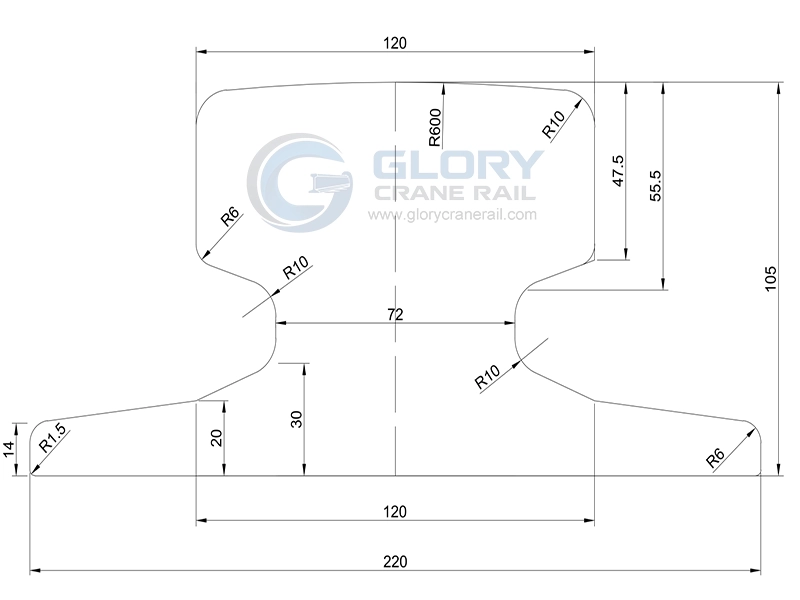

A120 RAIL DIMENSIONS
The A100 belongs to the profile with low height, flat bottom, and heavy thick web. This size profile has a very good load-carrying capacity. The head width is 120mm to carry the matching wheel size.
A100 Rail Dimensions:
Height: 105mm
Bottom width: 220mm
Head width: 120mm
Web thickness: 72mm
A120 RAIL MATERIAL
U71Mn material properties
| Mechanical Property | Chemical Composition | ||||||||||||
| Yield strength | Tensile strength | Elongation | Hardness | C | Si | Mn | S | P | Cr | Ni | Cu | ||
| MPa | kg/mm² | MPa | kg/mm² | min | HB | ≤ | ≤ | ≤ | ≤ | ≤ | |||
| ≥880 | 9% | 0.65-0.76 | 0.15-0.35 | 1.10-1.40 | 0.030 | 0.030 | 0.25 | 0.25 | 0.25 | ||||
