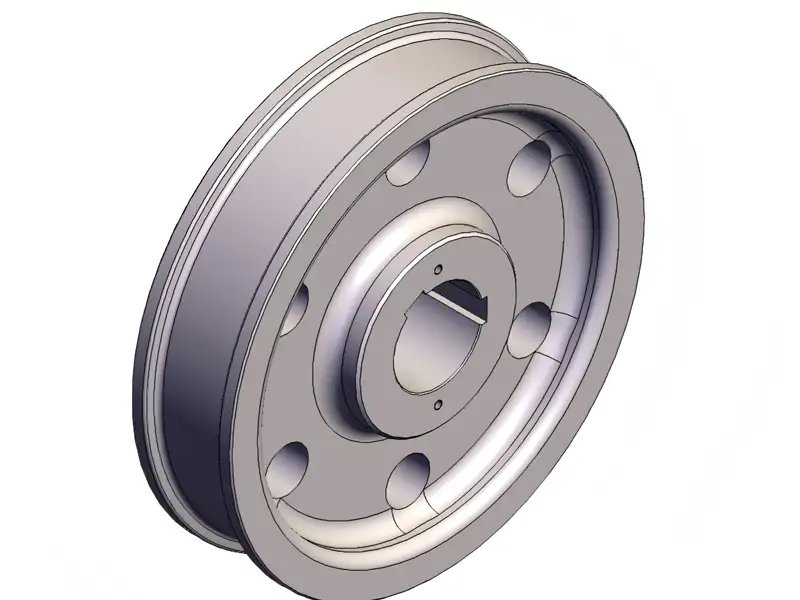

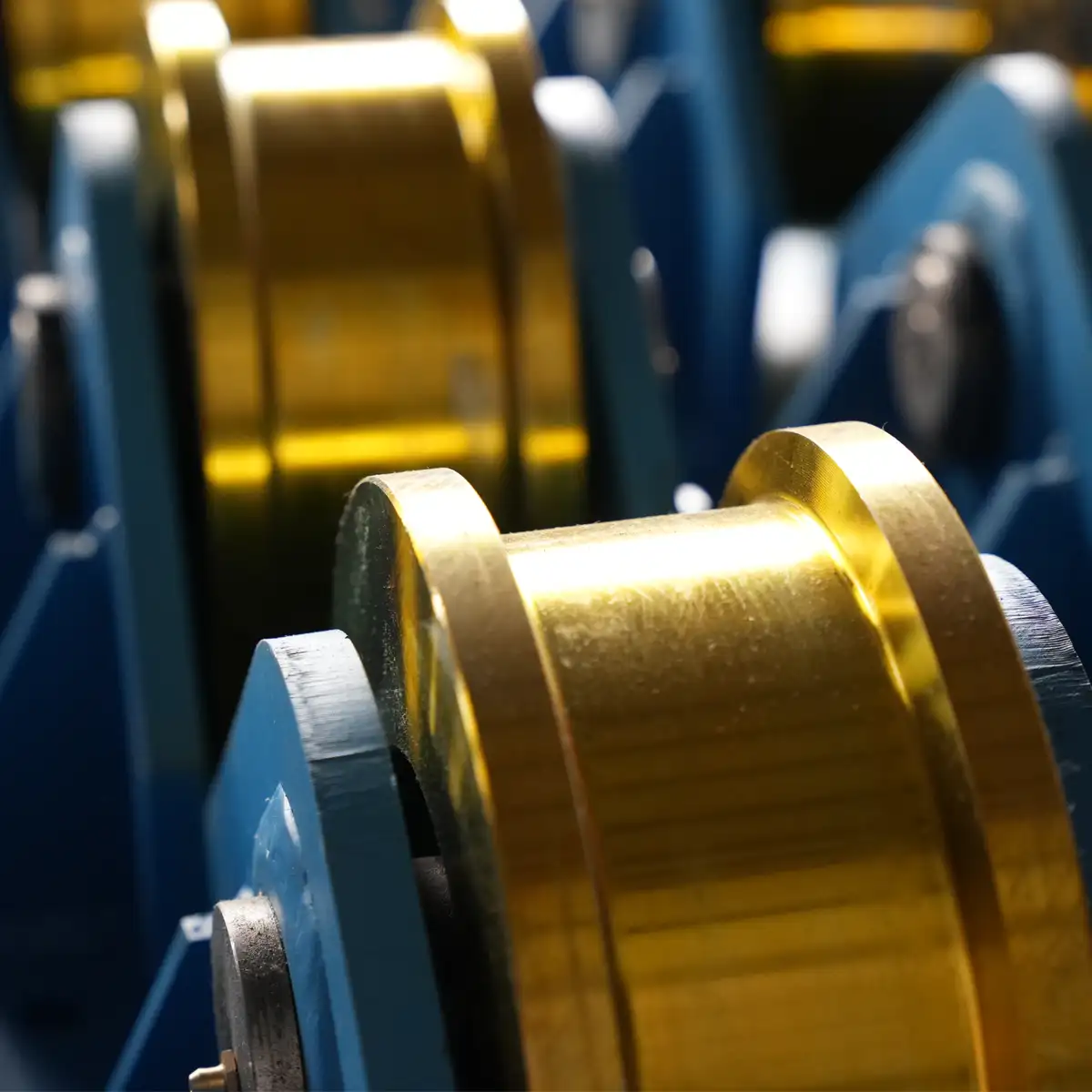

Double Rim Crane Wheel—Type SL
Material:
Forged 42CrMo, 65Mn, #65 Steel
Surface Hardness:
HB330-380 (Depth ≥20mm)
Machining Tolerance:
CNC Machined ±0.01mm
Standards:
DIN 15070, ISO, FEM, AISE, CE Certified
As a leading supplier of double-flanged crane wheels and an OEM crane wheel supplier, Glory Rail provides 42CrMo/65Mn heavy-duty double-flanged crane wheel solutions for overhead crane and gantry crane applications worldwide. Get your custom quote today!
100% Response Rate | ISO9001 Certified | MTR Report Included

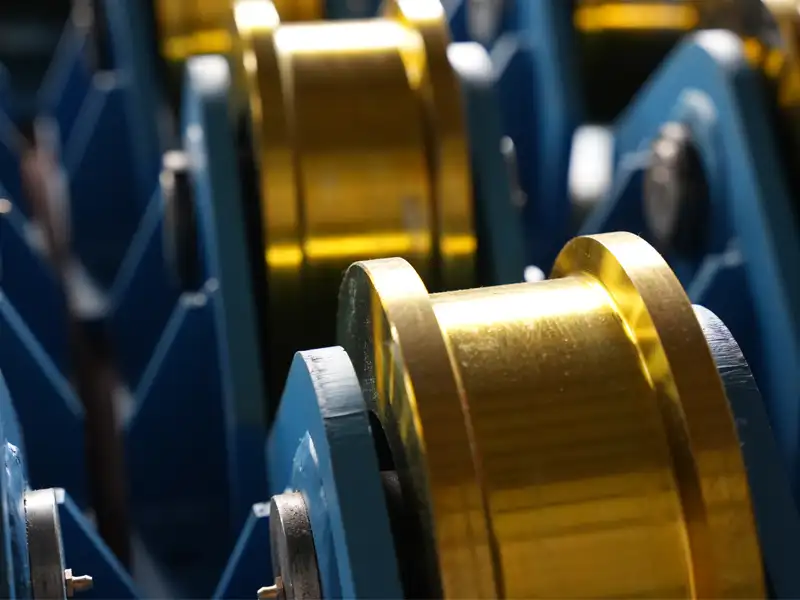

Professional Double Rim Crane Wheel Manufacturer
Double-flange crane wheels, also known as double-rim crane wheels, feature raised flanges on both sides of the tread, effectively preventing the wheel from derailing from the crane track. This dual-flange design provides maximum lateral stability and is the preferred choice for heavy-duty, long-distance crane systems, offering exceptional safety and reliability.
At Glory Rail, our Type SL crane wheels are specifically designed for demanding industrial environments. We manufacture each wheel using forging or casting processes, with materials ranging from medium-carbon steel to high-strength alloy steel (such as the 42CrMo crane wheel grade). Every wheel undergoes precision CNC machining and surface induction hardening to ensure a long service life and minimal wear.
Key Advantage: Compared to single-flange or flangeless wheels, the double-flange design significantly reduces the risk of derailment, making it particularly suitable for applications involving track misalignment, lateral loads, or high-speed operation. This makes it an ideal choice for overhead crane wheels, gantry cranes, port cranes, and steel mill cranes.
Double Rim Crane Wheel Technical Specifications
| Parameter | Specification | Notes / Tolerance |
|---|---|---|
| Type Code | SL (Double Rim) | Also known as double flange crane wheel |
| Wheel Tread Diameter (D) | 300 – 2000 mm (custom available) | Standard sizes: 315, 400, 500, 630, 800, 1000 mm |
| Wheel Tread Width (B1) | 80 – 220 mm | Matched to rail head: QU70, QU80, QU100, QU120 |
| Rim Height | 25 – 30 mm | Standard height; custom available |
| Bore Diameter (d) | 50 – 320 mm | Bearing bore tolerance: H7 / H8 as per drawing |
| Wheel Load Capacity | 5 – 200 tons | Calculated per FEM/DIN standards |
| Material Options | #65 / 65Mn / 42CrMo / ZG340-640 / GS-70 | Other alloy steels on request |
| Production Process | Forging / Casting + CNC Machining | Forged for heavy duty; cast for medium loads |
| Surface Hardness | HB 330 – 380 (tread & rim) | Double rim crane wheel HB330-380 hardness specification |
| Hardening Depth | ≥ 20 mm | Induction quenching + tempering |
| Bearing Type | Rolling / Sliding bearing | Cylindrical roller, spherical roller, or plain |
| Surface Treatment | Coating / Heat treatment / Plating | Painting, zinc plating, or as specified |
| Applicable Standards | DIN, ISO, EN, AISE, JIS, BS, API, GOST, GB/T | Manufactured to customer’s specified standard |
| Processing Accuracy | Dimensional tolerance up to 0.01 mm | Precision CNC machining with in-process gauging |
| Customization | Drawing-based manufacturing | Material, size, hardness — all customizable |
Need special sizes or materials not listed in the table? We manufacture custom double-rim crane wheels made of 42CrMo for port cranes, as well as products for other heavy-duty applications.
Need a Complete Double Rim Crane Wheel Assembly?
Precision-forged shafts: Made from high-strength 42CrMo / 40Cr alloy steel, quenched and tempered, and equipped with precision-ground keyways.
Precision-forged shafts: Made from high-strength 42CrMo / 40Cr alloy steel, quenched and tempered, and equipped with precision-ground keyways.
Angular bearing housings: CNC-machined ductile iron or cast steel housings ensure precise wheel alignment and smooth operation.
Heavy-Duty Bearings: Optional SKF, FAG, NSK, or high-quality self-aligning roller bearings with excellent resistance to impact loads.
100% Rigorous Quality Inspection: Each unit undergoes dynamic balancing tests, rigorous ultrasonic testing (UT), and dimensional tolerance verification before shipment.
Material Selection Guide
Advanced Crane Wheel Material Selection & TGL/DIN Customization
Selecting the correct material for crane wheels is critical to their performance and service life.
Standard Grade
65Mn Steel
✔ Medium- to high-carbon steel
✔ Good hardenability and wear resistance
✔ An economical choice for general-purpose applications
✔ Suitable for loads of approximately 50 metric tons
✔ Commonly used in workshop overhead cranes
Heavy Duty
42CrMo Alloy Steel
✔ High-Strength Chromium-Molybdenum Steel
✔ Excellent toughness and fatigue resistance
✔ Higher load-bearing capacity (up to 200 metric tons)
✔ Deep-hardened with uniform hardness
✔ Suitable for port and steel mill cranes
Cast Option
ZG340-640 / GS-70
✔ Cast steel is suitable for complex shapes
✔ Good machinability and weldability
✔ Lower cost for medium-duty applications
✔ Wider range of sizes
✔Suitable for bridge crane wheels
Not sure which material to choose? Our engineering team can assist you with crane wheel material selection based on your specific load, speed, duty cycle, and environmental conditions. As an experienced OEM crane wheel supplier, Glory Rail have provided wheel products for virtually every type of crane application.
Need help selecting materials? Get free material recommendations from our engineers.
Quality Control & Manufacturing Process
Every Glory Rail dual-flange crane wheel undergoes a rigorous, multi-stage quality inspection process.
Raw Material Inspection:
Ultrasonic and magnetic particle testing to ensure there are no internal defects.
CNC Machining:

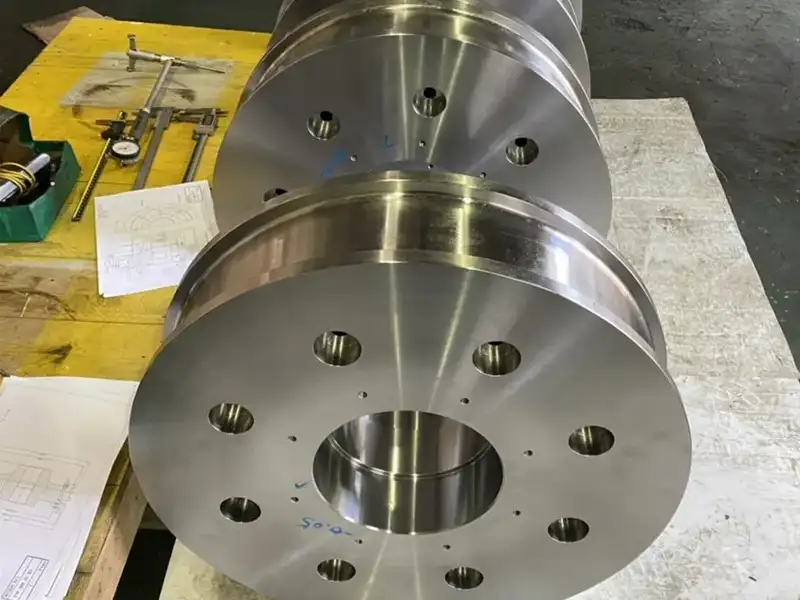

Precision CNC turning and milling, with in-process dimensional verification at every stage.
Heat Treatment:
Induction surface hardening — hardness HB330–380, hardening depth ≥20 mm.

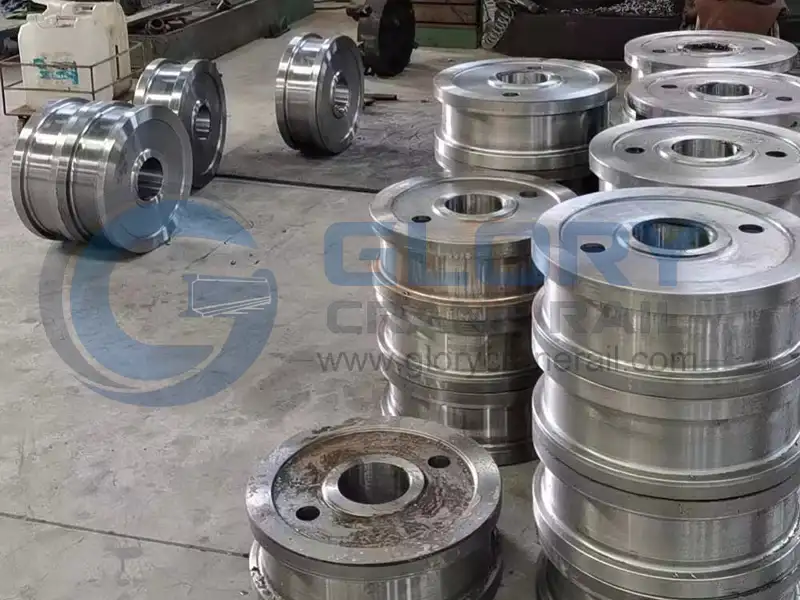

Final Inspection & Packaging:
100% final inspection + hardness test report, export-grade wooden crate packaging.
Want to see more inspection photos or quality certificates? Contact us to obtain the complete quality documentation for our heavy-duty double-rim wheels.
