casting wire rope crane drum

Casting wire rope drum for crane

Materials: cast steel, cast iron

Length: 1000-4000mm

Diameter: 300-1000mm

Thickness: 50-500mm

Axle diameter: 50-500

Rope slot radius: R10-R100

Max load capacity: 3.2T-100T

Lifting height: 12m-50m

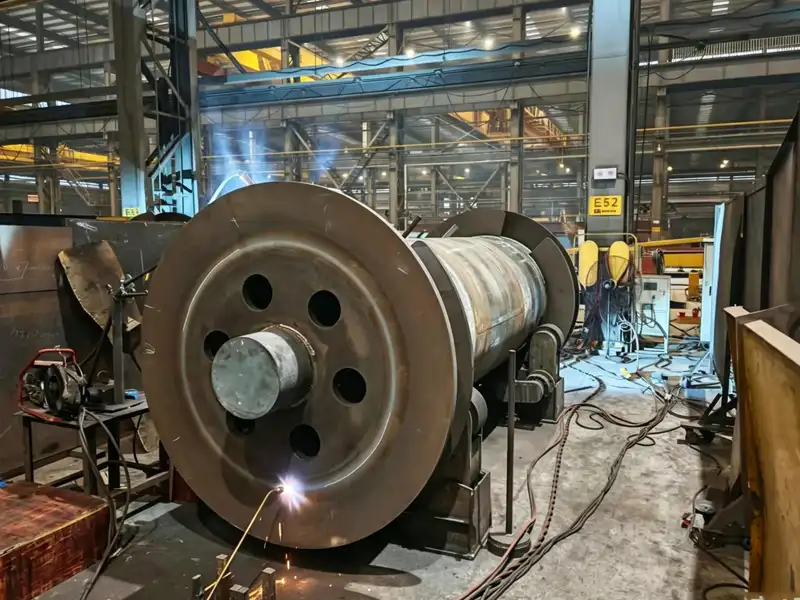

Groove surface quench: HRC45-55

Groove surface quench depth: ≥2mm

Max processing diameter: 2,000mm

Standard: DIN, ASTM, GOST, GB, JIS, ANSI,BS

The drum can be customized. Contact us for more producr details!

SEND A INQUIRY

Classification of Crane Drum

1. Cast steel crane drum
The material of this kind of crane drum is cast steel.

It is rarer than cast iron type and steel plate crane drum because of the lower cast ability.

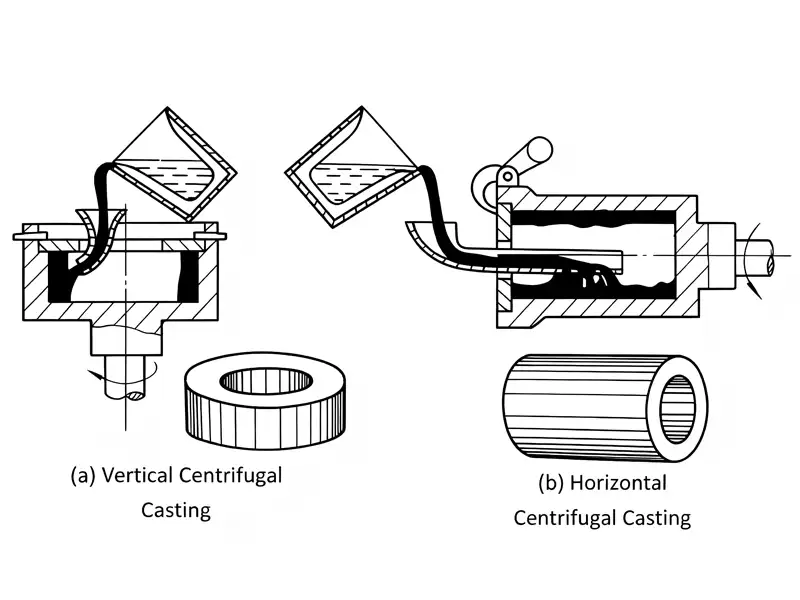

Centrifugal casting is used in the process of production.

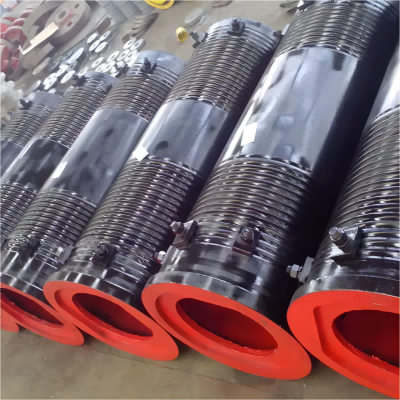

2. Cast iron crane drum
The material of this kind of crane drum is cast steel.

It is rarer than cast iron type and steel plate crane drum because of the lower cast ability.

Centrifugal casting is used in the process of production.

We can produce drums according to the needs of customers

Widely application

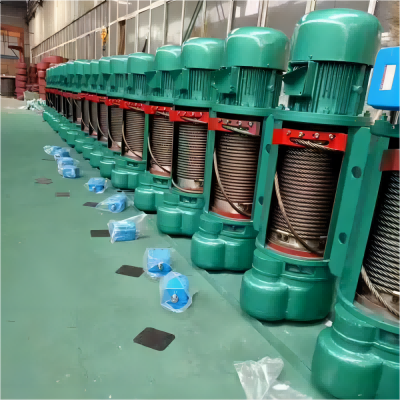

Electric hoist

Electric hoist

Electric hoist trolley for double girder EOT crane

Electric hoist trolley for double girder EOT crane

These rope drums are widely known for it’s durability and quality, and widely used on bridge crane and gantry crane to the lifting mechanism of the crane, it is an important component. It’s main function is to wind wire rope and then lift the materials.

The wire rope crane drum , hoist drum and winch drum are widely used on types of wire rope hoists, winches, and various types of overhead travelling crane, gantry crane, jib cranes and other lifting and towing mechanism, etc.

Double girder overhead crane traversing trolley

Double girder overhead crane traversing trolley

Electric winch

Electric winch

Casting wire rope crane drum specifications

Specifications

Lifting Tonnage Pulley Ratio Screw Pitch Lifting Height

Weight(kg)

Φ300*1000 3.2T 2 14 12 264
Φ300*1500 3.2T 2 14 18 342
Φ400*1000 5T 2 16 16 334
Φ400*1500 10T 3 16 16 454
Φ500*1500 20T 3 20 16 753
Φ500*1500 15T 4 20 12 753
Φ650*2000 32T 4 24 16 1500
Φ800*2000 50T 5 28 12 2534
Φ800*4000 75T 5 32 20 3390
Φ1000*4000 50T 6 36 20 6070

This is part of crane drum specifications, you can contact us for more drum details!

Product details

Show highlights without fear of flaws

high-quality material selection

1. High-qualith material selection


Made of high-quality materials;

High strength;

Not easy to wear;

Long service life

2. Reasonable design


Compact structure;

Flexible and convenient operation

reasonable design
reliable quality

3. Reliable quality


Selected materials;

Strictly controlled production process;

Guaranteed product quality

4. Support customization


Complete specifications;

Support customization

support customization
