Forged hook--crane single hook

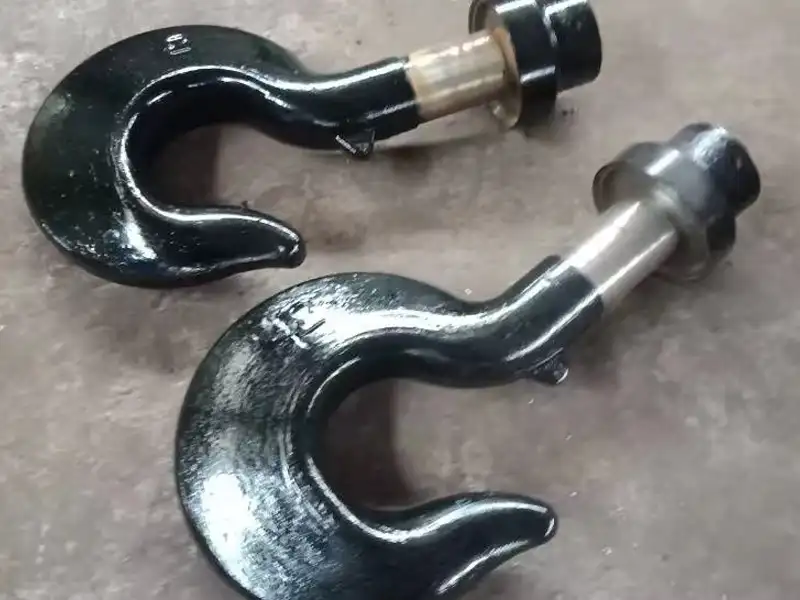

Forged Crane Hook

Throat Opening: 25-150mm

Body Diameter: 16-100mm

Inner Width: 30-180mm

Inner Height: 50-500mm

Eyelet Diameter: 20-100mm

Overall Length: 300–1000mm

Available Hook No. : From 2.5 to 250

Strength Grade: P, S, T, V

Lifting Capacity: 5T–500T or customization

Materials: 35CrMo, 42CrMo, 30CrMnSiA

Hook Shape: single ear, double ear, U-shaped, etc.

Forging Method: Die Forging (RS(N)) or Free Forging (RF(N)

More specification data details, welcome to contact us!

SEND A INQUIRY

Forged crane hook types

Forged hooks can be divided into single hooks and double hooks;

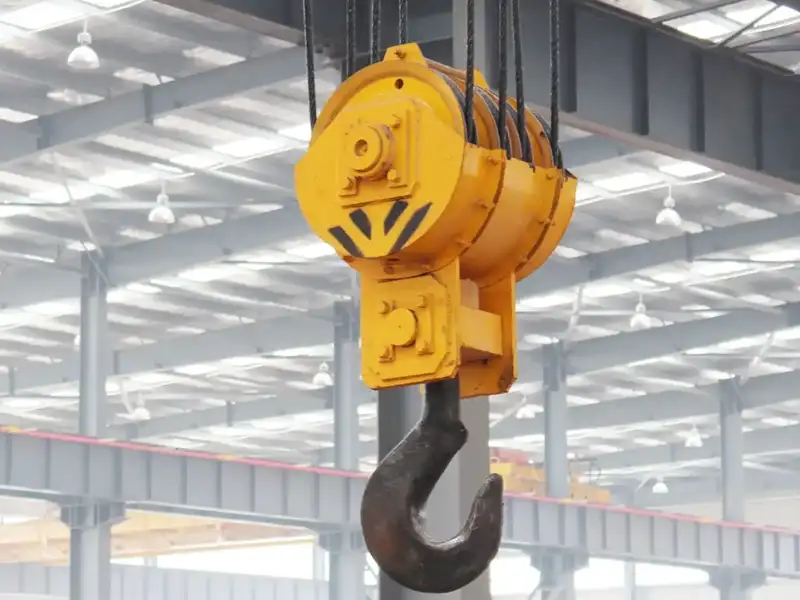

Single hooks are mostly used in work places with a lifting weight of less than 80 tons;

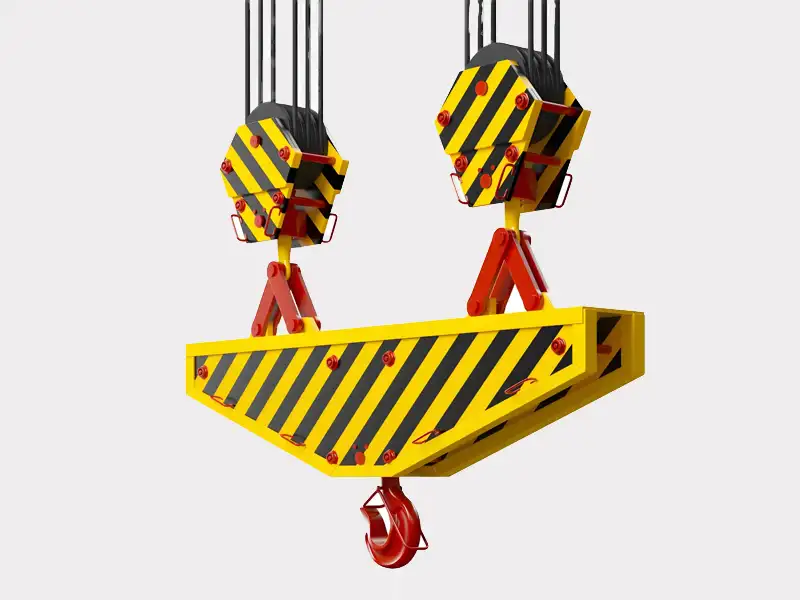

double hooks with symmetrical force are often used when the lifting weight is greater than 80 tons;

Single-ear hook is commonly used in general lifting equipment, such as single beam cranes and simple crane systems;

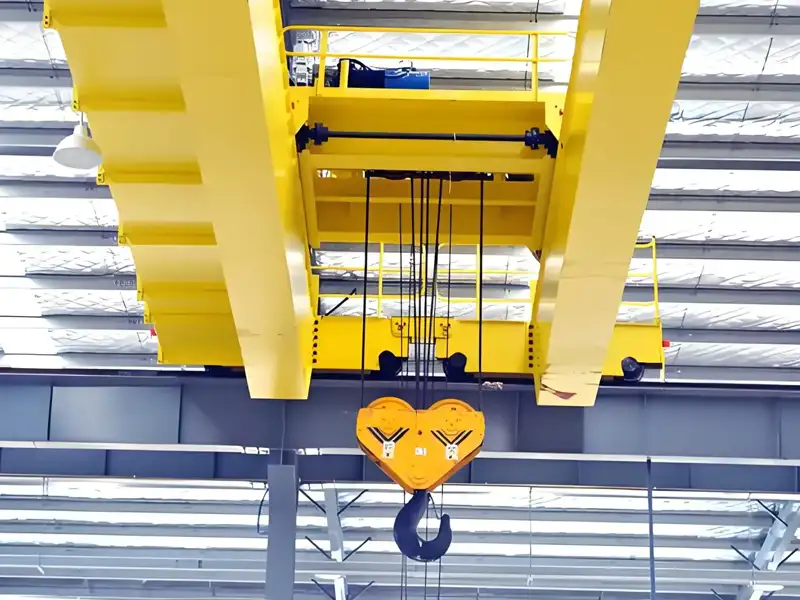

Double-ear hook is commonly used in double-girder cranes and lifting systems that require greater stability;

Single-ear cranehooks are usually used in  construction sites, warehouses and other places, it is used for lifting general materials;

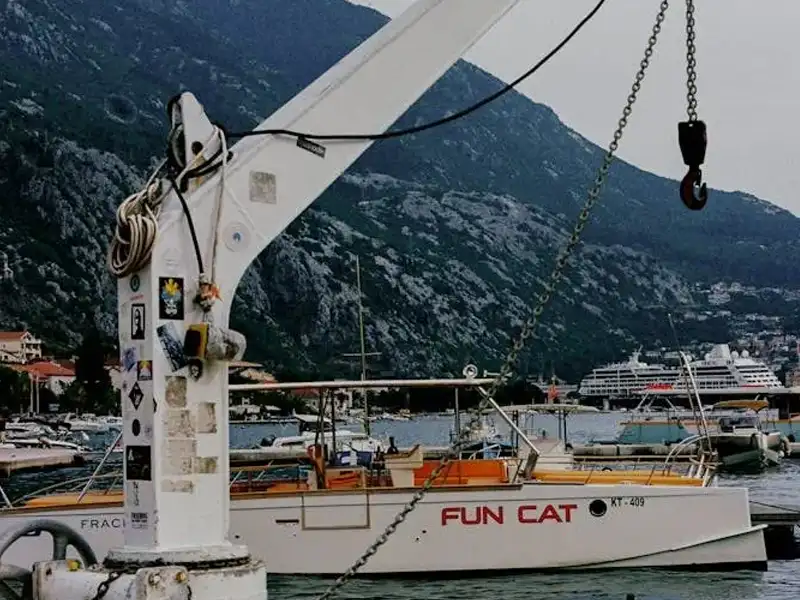

Double-ear crane hooks are widely used in heavy industry, ports, shipbuilding and other places where heavy equipment and materials need to be handled.

Contact us for more crane hook specifications

Contact us
  • crane single hook
  • crane double hook

Specifications for forged crane hook

Dimension for single-ear crane hook

Standard: DIN15401

Hook NO. Type a1 a2 a3 b1 b2 d1 e1 e2 e3 f1 f2 f3 g1 h1 h2 l3 r1 r2 r3 r4 r5 r6 r7 r8 r9 Weight(kg)
4 RSN 71 56 80 63 53 48 172 69 148 45 16 80 67 285 8 12 71 150 150 103 90 160 8.8
6 RSN 90 71 101 80 67 60 218 75 185 57 18 100 85 380 10 16 90 190 190 131 112 200 17.1
8 RSN 100 80 113 90 75 67 242 86 210 64 23 112 95 418 11 18 100 212 212 146 125 224 24
10 RSN 112 90 127 100 85 75 256 94 221 46 26 23 125 106 452 12 20 65 165 165 163 140 12 250 34
12 RSN 125 100 143 112 95 85 292 104 252 53 34 28 140 118 650 14 22 70 185 185 182 160 16 280 47
16 RSN 140 112 160 125 106 95 325 120 280 58 35 33 160 132 730 16 25 80 210 210 204 180 16 320 66
20 RSN 160 125 180 140 118 106 370 131 330 68 45 33 180 150 800 18 28 90 240 335 232 200 20 400 112

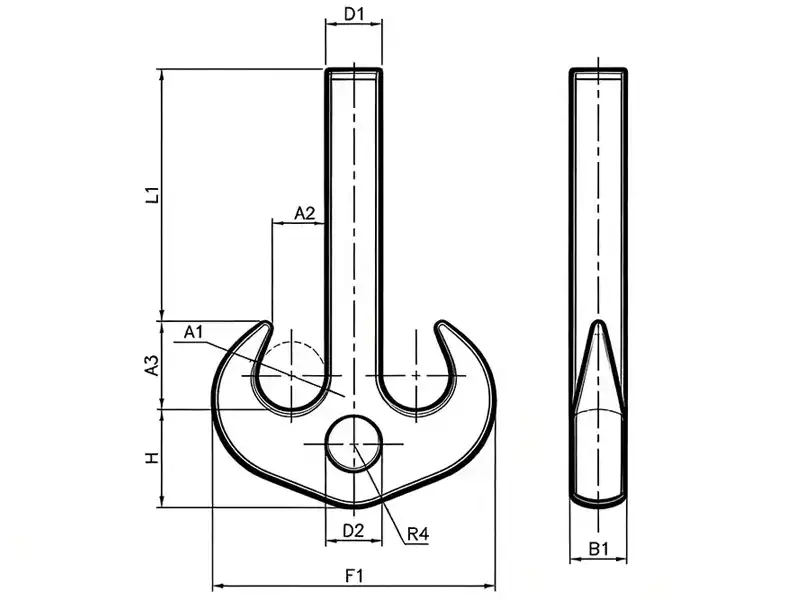

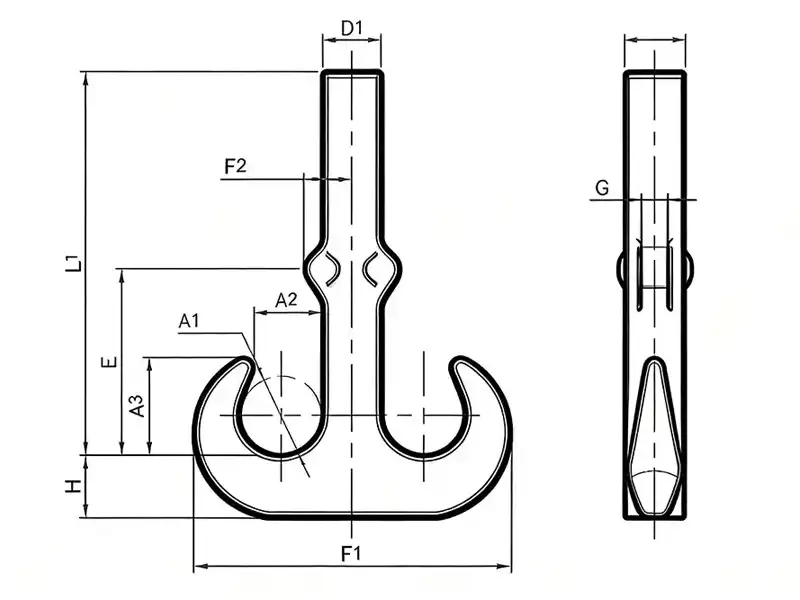

Deminsion for double-ear crane hook

Standard: DIN15401

Hook NO.

 Type a1 a2 a3 b1 d1 e f1 f2 F3 g h l1 r1 r2 r3 r4 r5

Weight(kg)
16 RSN 112 90 146 95 95 237 471 69 36 28 118 580 14 11 132 16 4.0 69.7
20 RSN 125 100 163 106 106 265 531 75 36 33 132 750 16 12.5 150 16 4.0 99.5
25 RSN 140 112 182 118 118 315 598 86 45 33 150 915 18 14 170 20 5.0 138
32 RSN 160 125 205 132 132 335 672 94 45 38 170 990 20 16 190 20 5.0 197
40 RSN 180 140 230 150 150 375 754 104 45 38 190 1085 22 18 212 20 5.0 286
50 RSN 200 160 260 170 170 420 842 120 56 42 212 1165 25 20 236 25 6.0 394
63 RSN 224 180 292 190 190 460 944 131 56 42 236 1290 28 22 265 25 6.0 547

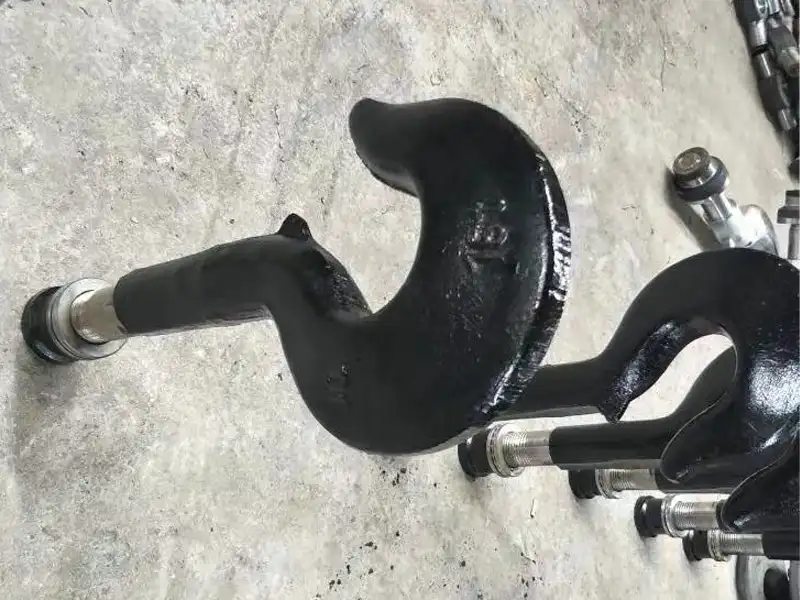

Forged Hook Trimming Process

Our hook production factory has many years of processing experience and technology accumulation. Continuously improve the cutting, forging, welding, and heat treatment processes of steel to ensure that the hook achieves the required shape and performance. We support different requiremennts customization, such as carring capacity, body diameter, inner width, inner height and eyelet diameteretc. If you have requirements, welcome to contatc us! Our sales will reply you within 24 hours!
